Thank you for specifying genuine KOHLER Parts

Faucets

  Art   Part #   Description   Product Where used   Purpose
21260 Socket Wrench, 29/32" x 31/32" Early bath valves (i.e., K-7032) Removes bonnet
21262 P Socket Wrench, 29/32" x 31/32" Early bath valves (i.e.,K-7032) Removes bonnet
21263 Socket Wrench,1–3/32" hex x 1–7/32 bonnet Valvet bath valves (i.e., K–7004) Removes bonnet
21334 A Seat Wrench Trend valves Removes seat
21951 Seat Wrench Niedecken valves Removes seat
21999 Aerator Wrench Vandal proof faucets Removes aerator
22116 Seat Wrench Exposed Niedecken Removes seat
22117 A Spindle Bushing Wrench Niedecken valves Remove spindle bonnet
40003 Valve Body Wrench, 1-29/64" Installation of "–F" lav faucets Secures body under lav
  49197 Allen Wrench, 3mm Cygnet Bath Spout Secures set screw
57453 Spray Ring Nut Tool Showerheads Installation and servicing of showerhead
74893 Hex Wrench, 2.8mm Lav handles Secures set screw
77434 Allen Wrench, 3/32” Falling Water Faucets Secures set screw
93556 Allen Wrench, 1/8” Falling Water Faucets Secures set screw

Shower Door

  Art   Part #   Description   Product Where used   Purpose
62346 Wrench Shower Doors Door adjustment wrench
62728 Hex Wrench, 5/64” Shower Doors Door adjustment wrench
66636 Hex Wrench, 1/4” Shower Doors Door adjustment wrench
66637 Hex Wrench, 5/32” Shower Doors Door adjustment wrench
91230 Wrench Shower Doors Door adjustment wrench
94362 Wrench Shower Doors Installation and servicing of showerdoors

Toilets & Urinals

  Art   Part #   Description   Product Where used   Purpose
43138 Wrench Flush Valve replacement kit (43130) Service tool
51537 Lock Wrench Tank Cover locks (K–4557) Removes locks
53022 Wrench, 11/64" square opening Flow Control Urinal Spuds Adjusts the flow
  81806 Service Tool Pressure Flush Toilet Removes cartridge

Whirlpools

  Art   Part #   Description   Product Where used   Purpose
30706 Suction Removal Tool Suction from Piezo whirlpools Removes flange
30739 Jet Removal Tool Whirlpools (K–9694 thru 9698 jets) Removes jet trim
65361 Jet Tool Whirlpools Removes Jet Flange
66555 Adjustment Gauge Autofill Kit (K–9704) Drain adjustments
67054 Filter Wrench Whirlpools Servicing filter
68989 Control Tester Whirlpools with electronic control Detection of failed controls
  93494 Magnet Systems II and III Whirlpools Troubleshoots whirlpools
  93975 Jet Wrench Whirlpools Removes Jet Flange
94469 Jet Flange Removal Tool Whirlpool (K–9694 thru 9698 jets) Removes Flange
95021 Cord Adapter Systems II and III Whirlpools Troubleshoots whirlpools
95040 Test Fixture Systems II and III Whirlpools Troubleshoots whirlpools

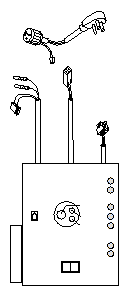

95076 Test Kit Systems II and III Whirlpools Troubleshoots whirlpools
95518 Wrench Whirlpools Adjusts pump couplings
95602 Jet Removal Tool Whirlpools Removes jet
  97730 Starjet Tool System Basic Whirlpools Removes jet
96744 Removal Tool SOK Overflowing Bath Removes the bath port flange
1005259 Leveling Wrench SOK Overflowing Bath Used to level the bath
