Geberit Rotary Pup-up Bath Drain BWO
Parts Catalog
www.guillens.com Printable www.guillens.com

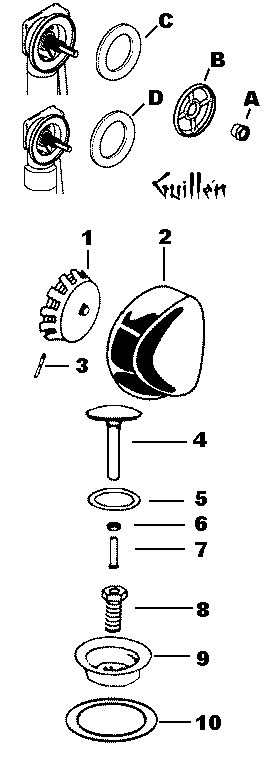

Rotary Drain - Trim Parts by Geberit
FIG	Part Number	Description
Hardware for back or rough in BWO
A	241.617.00.1	Nut
B	241.616.00.1	Flange
C	241.633.00.1	Gasket for Tubular BWO
D	860.177.00.0	Gasket for PVC BWO

Molded Handle, requires Handle Fig # 1
1	860.366.00.0	Handle Adapter
		Handle Adapter Help Page

	886.005.ALL	Molded Handle All Finishes
	241.628.21.1	Molded Handle Polished Chrome
	241.628.AA.1	Molded Handle Bone
	241.628.CL.1	Molded Handle Bright Brass
2	886.005.DX.0	Molded Handle Gray
	241.628.DY.1	Molded Handle White
	886.005.FF.0	Molded Handle Biscuit
	241.628.GG.1	Molded Handle ForeverShine™ PVD Brass
Hardware Screw for Molder Handle only
3	241.629.00.1	Set Screw
Solid Brass Handle
	240.702.ALL	Brass Handle ALL Finishes
	240.702.21.1	Brass Handle Polished Chrome
	240.702.IB.1	Brass Handle Polished Nickel
	240.702.45.1	Brass Handle Gold
	240.702.50.1	Brass Handle Unfinished
	240.702.97.1	Brass Handle Antique Brass
2	240.702.98.1	Brass Handle Old Silver/Pewter
	240.702.CH.1	Brass Handle Satin Brass
	240.702.CL.1	Brass Handle Bright Brass
	240.702.EK.1	Brass Handle Black
	240.702.FT.1	Brass Handle Satin Chrome
	240.702.ID.1	Brass Handle Brushed Nickel
	240.702.GG.1	Brass Handle ForeverShine™ PVD Brass
	240.702.GP.1	Brass Handle Oil Rubbed Bronze
	240.702.HD.1	Handle ForeverShine™ PVD Pearl Nickel
	240.702.HI.1	Brass Handle ForeverShine™ Satin Sheen
	240.702.HJ.1	Brass Handle ForeverShine™ Platinum
Hardware Screw for Solid Brass Handle only
3	860.111.00.0	Set Screw
Molded Plunger
	240.703.ALL	Molded Plunger ALL Finishes
	240.703.AA.1	Molded Plunger Bone
	240.703.DX.1	Molded Plunger Gray
4	240.703.DY.1	Molded Plunger White
	240.703.FF.1	Molded Plunger Biscuit
Solid Brass Plunger
	888.466.ALL	Brass Plunger ALL Finishes
	241.534.21.1	Brass Plunger Polished Chrome
	241.534.IB.1	Brass Plunger Polished Nickel
	888.466.45.1	Brass Plunger Gold
	888.466.50.0	Brass Plunger Unfinished
	888.466.97.0	Brass Plunger Antique Brass
	888.466.98.0	Brass Plunger Old Silver/Pewter
	888.466.CH.0	Brass Plunger Satin Brass
4	241.534.CL.1	Brass Plunger Bright Brass
	888.466.EK.0	Brass Plunger Black
	241.534.FT.1	Brass Plunger Satin Chrome
	241.534.ID.1	Brass Plunger Brushed Nickel
	888.466.GG.0	Brass Plunger ForeverShine™ PVD Brass
	888.466.GP.0	Brass Plunger Oil Rubbed Bronze
	888.466.HD.0	Plunger ForeverShine™ PVD Pearl Nickel
	888.466.HI.0	Brass Plunger ForeverShine™ Satin Sheen
	888.466.HJ.1	Brass Plunger ForeverShine™ Platinum
Hardware
5	241.610.00.1	O-Ring
6	241.611.00.1	Hex Nut
7	241.612.00.1	Screw
8	865.066.22.1	Drain Screw
Stainless Steel Molded Strainers
	888.128.ALL	Strainers Polished ALL Finishes
	241.612.21.1	Strainers Polished Stainless Steel
	241.612.21.1	Also used for White / Gray / Biscuit / Bone
	241.612.IB.1	Strainers Polished Nickel
	241.612.45.1	Strainers Gold
	888.128.97.0	Strainers Antique Brass
	888.128.98.0	Strainers Old Silver/Pewter
	241.612.CH.1	Strainers Satin Brass
	241.612.CL.1	Strainers Bright Brass
9	241.612.EK.1	Strainers Black
	241.612.FT.1	Strainers Satin Chrome
	241.612.ID.1	Strainers Brushed Nickel
	241.612.GG.1	Strainers ForeverShine™ PVD Brass
	888.128.GP.0	Strainers Oil Rubbed Bronze
	241.612.HD.1	Strainers ForeverShine™ PVD Pearl Nickel
	241.612.HI.1	Strainers ForeverShine™ Satin Sheen
	241.612.HJ.1	Strainers ForeverShine™ Platinum
Hardware
10	241.633.00.1	Gasket
Extended Parts Not Shown in drawing (For Marbolite Tubs)
	241.621.00.1	EXTENDED NUT FOR MARBLE
	241.622.00.1	EXT SHAFT 2.5" FOR TUBULAR BWO
	241.626.00.1	EXT SHAFT 2.5" FOR PVC & ABS BWO
	241.613.22.1	EXTENDED DRAIN SCREW - 2.0"

Geberit BWO (Bath Waste and Overflow) Bath Rotary pup-up bath drain shown in this page were used in the following models and finishes: Geberit 151.501.00.1; 151.504.00.1; 151.508.00.1; 51.512.00.1; 151.515.00.1; 151.450.00.1; 151.460.00.1; 151.460.00.1; 151.505.00.1; 151.513.00.1; 151.516.00.1; 151.503.00.1; 151.506.00.1; 151.51; 1.00.1; 151.514.00.1; 151.517.00.1; 151.518.00.1; 151.519.00.1; 151.510.00.1; 151.520.00.1; 150.160.00.1; 150.166.00.1; 150.182.00.1; 150.183.00.1; 150.184.00.1; 150.176.ID.1; 150.156.21.1; 150.156.DY.1; 150.156.FF.1; 151.551.21.1; 151.551.HM.1; 151.551.IB.1; 151.551.ID.1; 151.551.45.1; 151.551.97.1; 151.551.98.1; 151.551.CH.1; 151.551.CL.1; 151.551.EK.1; 151.551.FT.1; 151.551.GG.1; 151.551.HD.1; 151.551.HI.1; 151.551.HJ.1; 151.550.1; 1.1; 151.550.45.1; 151.550.CL.1; 151.550.21.1; 151.550.AA.1; 151.550.DY.1; 151.550.FF.1; 151.550.GG.1; 886.401.00.0; 886.401.00.1; 241.617.00.0; 886.189.25.1; 886.189.25.0; 865.073.00.0; 865.073.00.0; 241.615.00.0; 241.615.00.1; 860.366.00.0; 860.366.00.1; 886.005.21.1; 886.005.21.0; 241.628.21.0; 886.005.45.1; 886.005.45.0; 240.702.45.0; 886.005.AA.1; 886.005.AA.0; 241.628.AA.0; 886.005.CL.1; 886.005.CL.0; 241.628.CL.0; 886.005.DX.1; 886.005.DX.0; 886.005.DY.0; 886.005.DY.1; 241.628.DY.0; 886.005.GG.1; 886.005.GG.0; 241.628.GG.0; 860.354.00.0; 860.354.00.1; 240.702.22.1; 240.702.22.0; 240.702.CL.0; 240.702.EK.0; 240.702.FT.0; 240.702.FW.1; 240.702.FW.0; 886.111.00.0; 886.111.00.1; 886.111.00.0; 886.111.00.1; 888.466.21.0; 888.466.21.1; 888.466.IB.0; 888.466.22.0; 888.466.22.0; 888.466.45.0; 888.466.50.1; 888.466.97.1; 888.466.CL.0; 888.466.CL.1; 888.466.EK.1; 888.466.FT.0; 888.466.FT.1; 888.466.ID.0; 888.466.ID.1; 888.466.FW.0; 888.466.FW.1; 888.466.GG.1; 888.466.GP.1; 888.466.HD.1; 888.466.HJ.1; 888.466.HJ.0; 905.448.00.0; 905.448.00.1; 905.039.00.0; 905.039.00.1; 905.550.00.0; 905.550.00.1; 886.011.22.0; 888.128.20.0; 888.128.20.1; 888.128.IB.0; 888.128.IB.1; 888.128.22.0; 888.128.22.1; 888.128.45.0; 888.128.45.1; 888.128.97.1; 888.128.97.0; 888.128.98.0; 888.128.98.1; 888.128.CH.1; 888.128.CH.0; 888.128.CL.0; 888.128.CL.1; 888.128.EK.1; 888.128.EK.0; 888.128.FT.1; 888.128.FT.0; 888.128.GG.0; 888.128.GG.1; 888.128.FW.0; 888.128.FW.1; 888.128.GP.1; 888.128.GP.0; 888.128.HD.1; 888.128.HD.0; 888.128.HI.1; 888.128.HI.0; 888.128.HJ.1; 888.128.HJ.0; 865.073.00.0; 865.073.00.0; 241.615.00.0; 241.615.00.1; 860.056.00.0; 860.056.00.1; 860.379.00.0; 860.379.00.1; 860.053.00.0; 860.053.00.1; 865.001.00.0; 865.001.00.1; 865.067.22.0; 865.067.22.1; 860.019.22.0; 860.019.22.1
