Toto CST416M Aquia II 1.6 & 0.9 Gpf Toilet Two Piece Elongated Dual Max 12" Rough-In  Parts Catalog

www.guillens.com         Printable                         Toto

 American Standard


Toto CST416M

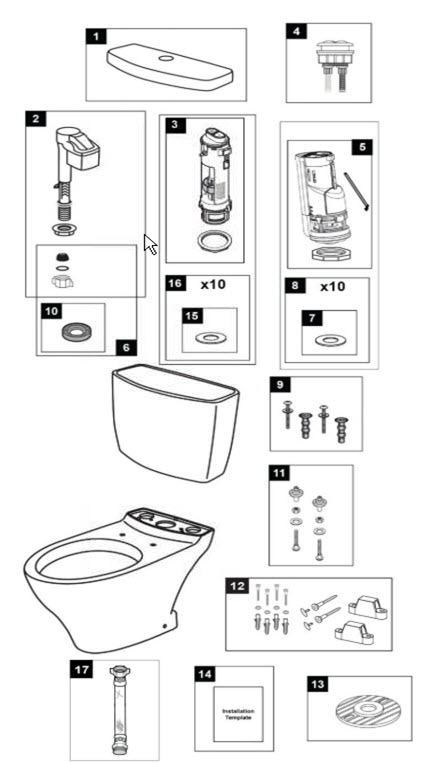

Pos P/N Description Qty
1 TCU416CR# Tank Lid 1
2 TSU99A.X Fill Valve 1
3 THU224  Flush Valve 1
4 THU314# Push Button Assembly 1
5 THU435 Flush Valve 1
6 THU238 Parts Bag Assembly 1
7 9BU088E Flush Valve Gasket 1
8 THU348 Flush Valve Gasket 1
9 THU651N Top Mounting Seat Hardware 1
10 9BU062E Tank to Bowl Gasket 1
11 TS810DV3 Tank Top Mounting Kit 1
12 THU427# Toilet Mounting Hardware 1
13 THU291 Socket Rough In 1
14 0GU147-1 Installation Template 1
15 9BU102E Flush Valve Gasket ( 1 Piece) 1
16 THU227 Flush Valve Gasket ( 1 Piece) 1
17 THU9090R Washlet Adapter Hose Kit 1


Note:
Items 7 and 8 are used with THU435 Flush Valve as shown
Items 15 and 16 are used with THU224 Flush Valve as shown.
Parts Manual ST416M, CT416, CST416M#01, CST416M#03, CST416M#11, CST416MF#12, CST416Mf#51, cotton, bone, colonial white, sedona beige, ebony, chrome, brushed nickel, ploished nickel, Toilet Repair Parts

Guillen's Enterprises, Inc. - Since 1973 - an Toto genuine parts distributor
 11040 West Flagler Street. Miami, FL 33174 USA
Revised: 20130911
