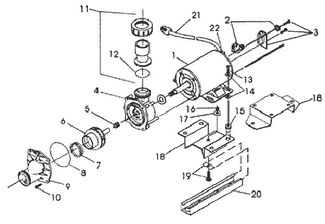

PARTS DRAWING |
| Fig |
P/N |
Part Description |
|
4-10 |
BG94000 |
Low
Motor - Pump Assembly, 7 amp 115v
|
|
4-10 |
CE35000
|
Low
Motor - Pump Assembly, 10 amp 115v
|
|
4-10 |
Y660000
|
Low Motor - Pump Assembly,
7 amp 115v |
|
4-10 |
Y658000 |
Low Motor - Pump Assembly,
4.8 amp 115v |
|
4-10 |
DA31000 |
Low Motor - Pump Assembly,
4.8 amp 115v |
|
4-10 |
C848000
|
High Motor - Pump Assembly, 16 amp 115v |
|
Note: Pump Assemblies do not include # 11
|
|
1 |
C049000
|
Motor Assembly only,
Low 10 amp, w/air switch |
|
1 |
S135000
|
Motor Assembly only,
Low 7.8 amp, w/air switch |
|
1 |
E672000
|
Motor Assembly only, High 16 amp,
w/air switch |
| 2 |
7396000
|
Switch, SPDT, 21 Amp, Air Actuated |
| N.S. |
N186000
|
Air Tube Compression Nut |
| 3 |
E698000
|
Enclosure, Air Switch |
| 4 |
F156000
|
Bracket, J-Light |
| 5 |
9245000
|
5/8" Mechanical Seal |
|
6 |
9221000
|
Impeller, Low, J-Pump |
|
6 |
C117000
|
Impeller, High, J-Pump |
| 7 |
9243000
|
Eye Seal |
| 8 |
9246000
|
O-Ring |
| 9 |
F157000
|
Suction Flange, J-Light |
| 10 |
F158000
|
Screw, Hex, Wshr Hd, 1/4-14 x 1.00"L |
| 11 |
9250000
|
Repair Kit, Union Adapter (Requires 2 sets) |
| 12 |
9231000
|
O-Ring, Union |
| 13 |
3945832
|
Bolt, Hex, 1/4-20 x 1.00"L |
| 14 |
3982832
|
Washer, 1/4 Flt, Type A Pin Wd Ser |
| 15 |
9216000
|
Wellnut, Rubber, 1/4-20 |
| 16 |
4034832
|
Nut, Locking Hd Kep Type, 1/4-20 |
| 17 |
4006832
|
Washer, 1/4 Flt, Type B Pin Wd Ser |
| 18 |
9217000
|
Bracket, Motor |
| 18 |
H333000
|
Bracket, Motor, 2" High |
| 19 |
9214000
|
Stud Nut, 1/4-20 x 1.25"L |
| 20 |
9213000
|
Channel, 1.63 x .81 x 9.38 |
|
21 |
C843000
|
Cord, Power Supply, 115V, 15A, 3 Ft. (for H412) |
|
21 |
E701000
|
Cord, Power Supply, 115V, 20A, 3 Ft. (for C848) |
| 22 |
2133000
|
Lug, Copper Cable Connection |
|
