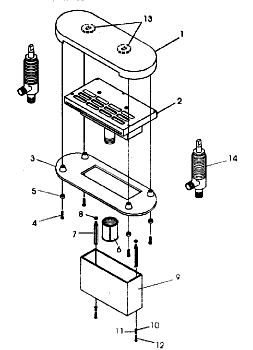

Water Rainbow® Ultra Fill Spout |
| Item | P/N | Part Name |
| 1 | A341827 | Cover, Ultra, Chrome |
| 1 | A341829 | Cover, Ultra, Bright Brass |
| 1 | A342827 | Plate, Ultra, Chrome |
| 2 | A165000 | Fillspout Assembly, Open |
| 3 | A342829 | Plate, Ultra, Bright Brass |
| 4 | G792000 | Screw, Hex Washer Hd, #4 x .63"L., Tp 25 |
| 5 | G791000 | Spacer Nylon, .38" O.D., .25"L. |
| 6 | B374000 | Coupling, 3/4", FPT x FPT |
| 7 | B372000 | Spacer, 1/4-20, Brass |
| 7 | B136000 | Spacer, 1/4-20, Brass Short |
| 8 | B373000 | Washer, .50" x .27" x .09 Thick |
| 9 | B870000 | Extension, 2.31", Chrome w/Logo |
| 9 | B871000 | Extension, 2.31", Bright Brass w/Logo |
| 9 | B872000 | Extension, 3.31", Chrome w/Logo |
| 9 | B873000 | Extension, 3.31", Bright Brass w/Logo |
| 10 | 4006832 | Washer, 1/4 Flat, Type B Pin Wd Ser |
| 11 | 4034832 | Nut, Locking Hd Kep Type 1/4-20 |
| 12 | 3947832 | Bolt, Hex, Full Thread, 1/4-20 x 1.50" |
| 13 | 2329000 | Gasket, Faucet Handle |
| 14 | A847000 | Valve, Supply |
| *N.S. | A848000 | Hardware Kit, Valve Mount |
| *N.S. | A894000 | Hook-Up Kit, Bath |
