Jacuzzi 3 Position Air Control Panel On-Off and accessories parts breakdown
 www.guillens.com           Printable           www.jacuzziparts.com

Jacuzzi 3 Position Air Control Panel On-Off
Jacuzzi color and finish codes   Compare Topside Control Panels

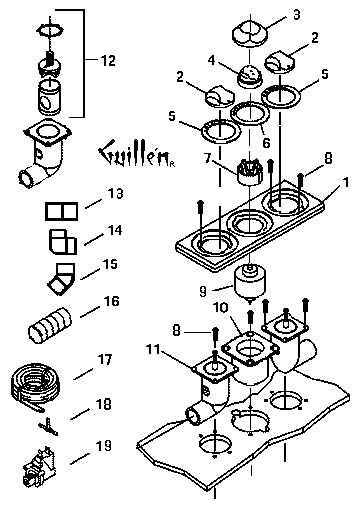

PARTS DRAWING Fig P/N Description Order
1-11 G107XXX

Complete Fig 1 to 11
1-8 G106XXX

3 Position Panel Kt #1 to 8
1 9224XXX

3 Position Control Panel

1
1 R373XXX 3 Position Control Panel 1
1a 9703YYY 3 Position Panel Trim 1
2 8267XXX Air volume control knob 2
3 8247XXX Bezel Sleeve 1
4 8246XXX On-Off button 1
5 8263000 Air volume graphic ring 2
6 8262000 On-Off graphic ring 1
7 C842000 On-Off button guide 1
8 9724000 Screw self tapping 10
9 C377000 On-Off bellow (air pump) 1
10 C841000 Cup for air bellow 1
11 U775000 Air volume control elbow 2
  RELATED COMPONENTS
12 BP54000 Air cartridge replacement 2
13 0647000 1/2" coupling
14 0436000 1/2" 90 degree elbow
15 0770000 1/2" 45 degree elbow
16 P000050 1/2" Flexible pipe
17 6627000 Air tubing 96" long 1
18 7031000 Air tubing  bleeder tee 1
19 7396000 air switch for pump 1
  RELATED PUMP ASSEMBLIES
  9249000 Pump assy. Low Style less than 11 amp 1
  C146000 Pump assy. High Style  over 11 amps 1

  OTHER AIR PANEL KITS
    G105XXX 3 Air volume kit
    G106XXX 3 Position On-Off Panel
    G107XXX 3-P Complete On-Off control
    G108XXX 3 Position Aeroflo On-Off
    8241XXX 2 Position Control Panel
    D851XXX 1 Position Control Panel

    OTHER GRAPHIC RINGS
    8262000 WHIRLPOOL on off
    8524000 LIGHT  Graphic ring
    8263000 Air volume  Graphic ring
    DS79000 AIRBATH  Graphic ring Aeroflo
    A918000 ALARM  Graphic ring 9600
    A924000 STEAM  Graphic ring 9600
    A919000 ACCESSORY  Graphic ring 9600
    A926000 FUNCTION  Graphic ring 9600
    A922000 PATTERN  Graphic ring 9600
    A925000 SPEED  Graphic ring 9600


Guillen's Enterprises, Inc. - Since 1973 - a Jacuzzi authorized genuine parts distributor
 11040 West Flagler Street. Miami, FL 33174 USA  - Ph 800-222-7800
Revised: 20100128

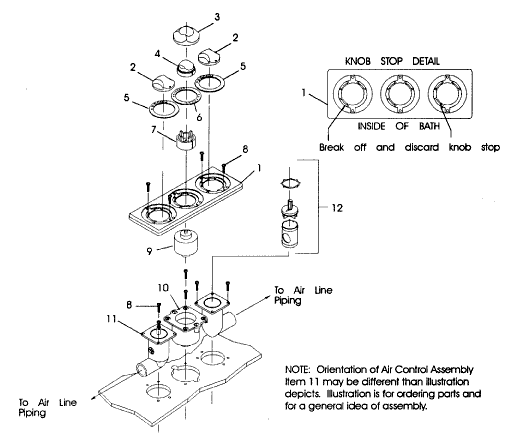

Item P/N Part Name
1 9224XXX Panel, 3-Position
2 8267XXX Knob, .25 Shaft Assembly
3 8247XXX Bezel, Actuator
4 8246XXX Button, Air Actuator
5 8263000 Ring, Graphic Air
6 8262000 Ring, Graphic, ON_OFF
7 C842000 Guide, Air Actuator
8 9724000 Screw, Thd Ctg, 4-24 x .5
9 C377000 Bellows, Air Actuator
10 C841000 Cup, Air Actuator
11 7510000 Air Control Assembly
12 8399000 Repair O-Ring/Valve Assembly
