Jacuzzi Suction Fittings and Suction Covers

Jacuzzi color and finish codes

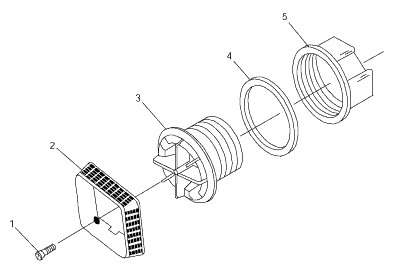

PARTS DRAWING

Fig

Description

1

1643000

Locknut, Suction Fitting

2136000

Ring, Back-Up

1958000

Suction Fitting Sub-Assembly

1616000

Suction Fitting Assembly

6651xxx

Plastic Suction Cover and Gasket

3958000

Screw

1616000

Suction Fitting Assembly

4507000

Ring, Suction Strainer

3060000

Suction Strainer, Modified, S.S.

4627000

Gasket, Suction Screen

4124yyy

Metal Suction Cover

11

3958000

Screw in chrome

11

4190yyy

Screw in finishes

12

0851000

2" PVC coupling

13

P000020

2" Flexible PVC pipe sold by linear feet

14

B072000

Ell Drain down Right Hand TYPE A

14

B07202T

Ell Drain down RH tapped (shown) B

14

B071000

Ell Drain down Left Hand TYPE A

14

B07102T

Ell Drain down LH tapped TYPE B

14-16

14-16

15

M463000

Temperarure and water level sensor

16

3044000

1/4" 90 degree compression elbow

17

4649000

1/4" x 96" L OD flexible nylon tube

18

3054000

1/4" straight compression fitting

19

3064000

1/2" mip x 1/8" fip reducing bushing

20

4330000

1/2" fip 3 psi suction check valve

21

4517000

2 90 degree Spigot x Slip elbow

22

4518000

2" 90 degree Spigot x Slip elbow

23

1592TAP

2" 90 degree Spigot x Slip elbow

23

0955TAP

1 1/2" 90 degree Spigot x Slip elbow

24

Jacuzzi finishes 6651904 6651914 6651917 6651922 6651924 6651940 6651944 6651945 6651949 6651951 6651952 6651953 6651956 6651962 6651963 6651969 6651978 6651984 6651999 6651xxx 4124827 4124828 4124829 4124847 4127YYY 4190827 4190828 4190829 4190YYY N506000 N507000
