Jacuzzi color and finish codes |
|
|
|
|

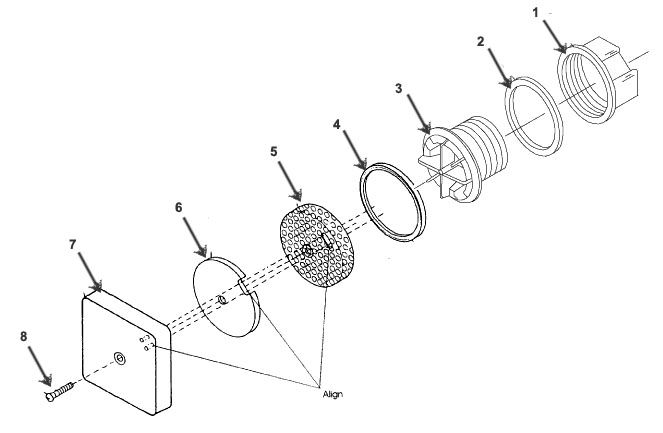

PARTS DRAWING |
Fig |
P/N |
Description |
|
 |
1 |
1643000 |
Locknut,
Suction Fitting |
|
2 |
2136000 |
Ring,
Back-Up |
|
3 |
1958000 |
Suction
Fitting Sub-Assembly |
|
1-3 |
1616000 |
Suction
Fitting Assembly |
|
4 |
6651xxx |
Plastic Suction
Cover and Gasket |
|
5 |
3959000 |
Screw |
|
6 |
1616000 |
Suction
Fitting Assembly |
|
7 |
4507000 |
Ring,
Suction Strainer |
|
8 |
3060000 |
Suction
Strainer, Modified, S.S. |
|
9 |
4627000 |
Gasket,
Suction Screen |
|
10 |
4124yyy |
Metal
Suction Cover |
|
11 |
3958000 |
Screw in
chrome |
|
11 |
4190yyy |
Screw in
finishes |
|
12 |
0851000 |
2" PVC
coupling |
|
13 |
P000020 |
2"
Flexible PVC pipe sold by linear feet |
|
14 |
B072000 |
Ell Drain
down Right Hand TYPE A |
|
14 |
B07202T |
Ell Drain
down RH tapped (shown) B |
|
14 |
B071000 |
Ell Drain
down Left Hand TYPE A |
|
14 |
B07102T |
Ell Drain
down LH tapped TYPE B |
|
14-16 |
U913000 |
Ell Drain
down RH with sensor |
|
14-16 |
U914000 |
Ell Drain
down LH with sensor |
|
15 |
M463000 |
Temperarure and water level sensor |
|
16 |
3044000 |
1/4" 90
degree compression elbow |
|
17 |
4649000 |
1/4" x
96" L OD flexible nylon tube |
|
18 |
3054000 |
1/4"
straight compression fitting |
|
19 |
3064000 |
1/2" mip
x 1/8" fip reducing bushing |
|
20 |
4330000 |
1/2" fip 3
psi
suction check valve |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Jacuzzi
finishes 6651904 6651914 6651917 6651922 6651924 6651940 6651944 6651945 6651949
6651951 6651952 6651953 6651956 6651962 6651963 6651969 6651978 6651984 6651999
6651xxx 4124827 4124828 4124829 4124847 4127YYY 4190827 4190828 4190829 4190YYY
N506000 N507000 |
|
|
|
|
|
