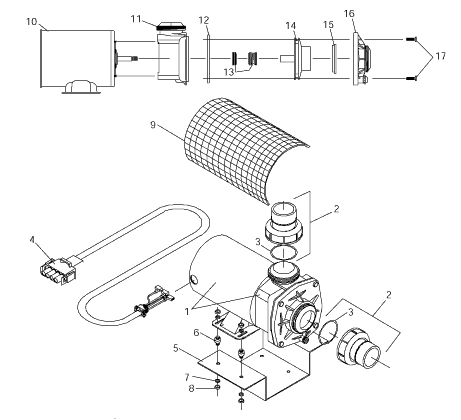

| Item |
P/N |
Part Name |
| 1 |
C182000 |
K-Pump/Motor, 230V, 60 Hz |
| 2 |
9250000 |
Repair Kit, Union Adapter |
| 3 |
9231000 |
O-Ring, Union |
| 4 |
F121000 |
Plug Assy, Jets, 76"L.,
Snap-In |
| 5 |
4477000 |
Bracket, Motor, 1" High |
| 6 |
3689000 |
Vibration Damper |
| 7 |
3982832 |
Washer, 1/4 Flt, Type A Pln
Wd Ser |
| 8 |
4034832 |
Nut, Locking Hd Kep Type
1/4-20 |
| 9 |
K560000 |
Barrier, 12" x 14" Screen |
| 10 |
C185000 |
Motor, 11.3/22.6 A, 230/115V
60 Hz |
| 11 |
9247000 |
Bracket Case, J-Pump |
| 12 |
9246000 |
O-Ring, 5.475 ID x .210 Thk |
| 13 |
9245000 |
Repair Assy, Ceramic Seal |
| 14 |
B913000 |
Impeller, J-Pump |
| 15 |
9243000 |
Eye Seal, J-Pump |
| 16 |
F189000 |
Suction Flange, K-Pump |
| 17 |
7939000 |
Bolt, Hex, 1/4-20 x .88"L. |
|
|
|
