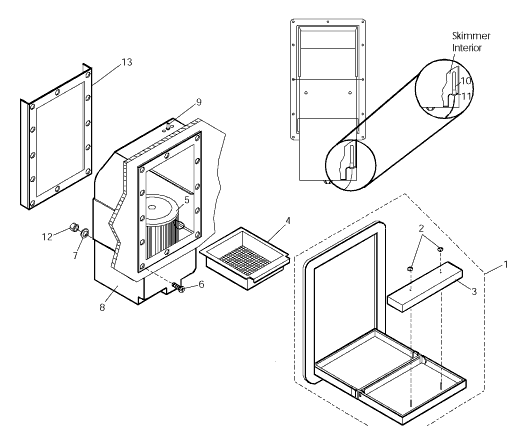

FRONT LOAD FILTER/SKIMMER ASSEMBLY |
| Item |
P/N |
Part Name |
| 1 |
6639XXX |
Frame Assembly, Front Load Filter |
| 2 |
6666000 |
Ring, Push-On, .097 Dia. |
| 3 |
6665000 |
Weir Float, Front Load Filter |
| 4 |
6636000 |
Basket, Skimmer Front Load Filter |
| 5 |
6199000 |
Filter Cartridge, 25 Sq. Ft., Front Load Filter |
| 6 |
3975000 |
Screw, Mach, PHP, #10-24 x 1.00"L. |
| 7 |
4036000 |
Washer, #10 Flat, Type A Pin Wd Ser |
| 8 |
9912000 |
Front Load Body/Seal Assembly |
| 9 |
6171000 |
Seal, Valve 1" |
| 10 |
5659000 |
Sleeve, Thermostat |
| 11 |
5660000 |
Grommet, Sealing |
| 12 |
3991832 |
Nut, Hex, UNC-2B #10-24 |
| 13 |
G894000 |
Backing Plate, Skimmer |
|
|
|
|
