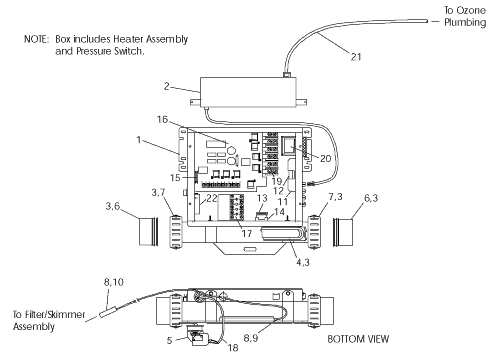

| Item |
P/N |
Part Name |
| 1 |
F106000 |
Balboa Box/Deluxe/240/2-Pump |
| 1 |
F107000 |
Balboa Box/Deluxe/240 Convertible |
| 1 |
F108000 |
Balboa Box/Standard/240/2-Pump |
| 1 |
F109000 |
Balboa Box/Standard/240 Convertible |
| 1 |
H136000 |
Balboa Box/Duplex/120 Convertible |
| 1 |
H276000 |
Balboa Box/2-Pump/230V |
| 1 |
H716000 |
Balboa Digital Duplex 240/2-Pump |
| 1 |
K286000 |
Balboa Box/Deluxe/240V/3-Pump |
| 2 |
G216000 |
Ozone Generator, Hercules |
| 2 |
G360000 |
Ozone Generator, Prozone |
| 3 |
F801000 |
Heater Kit |
| 4 |
F802000 |
Heater Assembly |
| 4 |
K464000 |
Heater, 5.5 kW, Low Flow |
| 5 |
F800000 |
Pressure Switch, 2-Pump/3-Pump |
| 5 |
G323000 |
Pressure Switch, 1-Pump |
| 6 |
F803000 |
Tail Piece |
| 7 |
F804000 |
Nut, Black, 2 Part |
| 8 |
F805000 |
Sensor Assembly |
| 9 |
F806000 |
Sensor Only, 48" |
| 10 |
F807000 |
Sensor Only, 96" |
| 11 |
F589000 |
Fuse Block, 30 Amp |
| 12 |
F588000 |
Fuse, 30 Amp |
| 12 |
H316000 |
Fuse, 20 Amp |
| 13 |
F586000 |
Fuse, 10 Amp |
| 14 |
F587000 |
Fuse Block, 10 Amp |
| 15 |
F585000 |
Fuse, 3 Amp, Fast Blow |
| 16 |
F809000 |
PC Board, F106/7, Deluxe Digital |
| 16 |
F810000 |
PC Board, F108/9, Standard Digital |
| 16 |
H311000 |
PC Board, H136 Duplex Control Box |
| 16 |
J118000 |
PC Board, H276 Duplex Control Box |
| 16 |
J852000 |
PC Board, H716 Digital Duplex Box |
| 16 |
K623000 |
PC Board, K286 3-Pump Control Box |
| 17 |
F574000 |
Terminal Strip, 50 Amp, 5 Position |
| 18 |
F575000 |
Wire Assembly, Pressure Switch |
| 19 |
F580000 |
Terminal Block, 6 Circuit |
| 20 |
F581000 |
Transformer, 120V CT |
| 20 |
F317000 |
Transformer, 240V CT |
| 20 |
K285000 |
Transformer, Balboa Duplex |
| 21 |
G215000 |
Tubing, Ozone Generator |
| 22 |
F573000 |
Battery, Ni-Cad, 7.2 Volt |
|
|
|
