1 & 3
Position Air Control Panel |

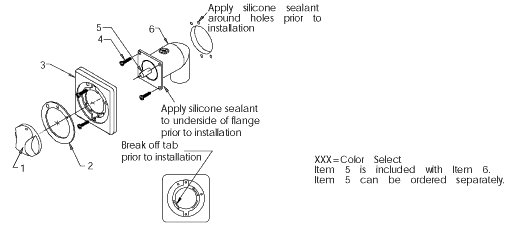

One Position Control Panel
| Item |
P/N |
Part Name |
| 1 |
8267XXX
|
Knob, .25 Shaft, Assy |
| 2 |
8263000 |
Ring, Graphic, Air |
| 3 |
D851XXX
|
Panel, 1 Position |
| 4 |
9724000 |
Screw, Thd Ctg. 4-24 x .5 Ty 25 |
| 5 |
8399000 |
Repair O-Ring/Valve Assy |
| 6 |
U775000 |
Air Cup ASSY
W/CHECK VALVE --> Replaces 7510000 |

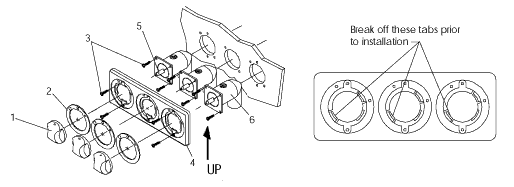

Three Position Control Panel (Air Control)
| Item |
P/N |
Part Name |
| 1 |
8267XXX
|
Knob Assembly |
| 2 |
8263000 |
Ring, Graphic, Air |
| 3 |
9724000 |
Screw, Thd Ctg. 4-24 x .5 Ty 25 |
| 4 |
B564XXX
|
Panel, 3 Position, w/o Tabs |
| 5 |
8399000 |
Repair O-Ring/Valve Assy |
| 6 |
U775000 |
Air Cup ASSY
W/CHECK VALVE --> Replaces 7510000 |
|
|
