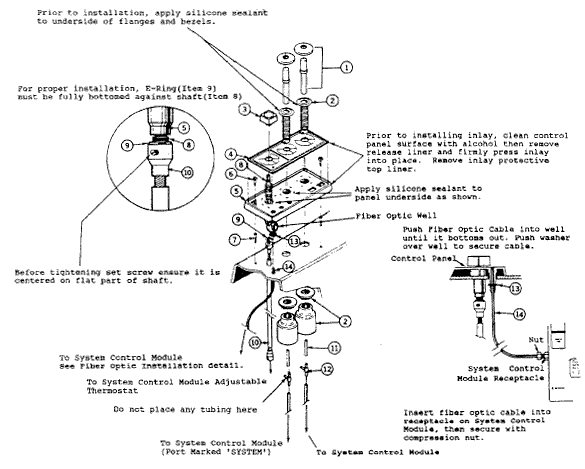

Control Panel Air Actuator |
| Item |
P/N |
Part Name |
| 1 |
7760000 |
Repair Pushbutton Assembly |
| 2 |
6828000 |
Actuator, Switch Assembly |
| 3 |
8611908 |
Air Control Knob, Brown |
| 4 |
7092000 |
Inlay, Control Panel, Aero, Razza |
| 4 |
9037000 |
Inlay, Control Panel, Vectra |
| 4 |
9039000 |
Inlay, Control Panel, Vectra II |
| 4 |
B067000 |
Inlay, Control Panel, Model B380 |
| 6 |
3965000 |
Screw, Mach, PHP, #6-32 x 1.25"L. |
| 7 |
7147000 |
Well Nut, #6-32 |
| 8 |
7757000 |
Control Shaft Repair Assembly |
| 9 |
7082000 |
Retainer, E-Ring, .25 Dia. |
| 10 |
8679000 |
Shaft, Flex Control, Female x Female |
| 11 |
6627000 |
Tubing, .19 OD x .09 ID Tube |
| 12 |
7031000 |
Tee, Bleeder, .093 ID Tube |
| 13 |
7090000 |
Washer, Nylon, .257 ID x .5 OD |
| 14 |
7667000 |
Cable, Fiber Optic, 60" x .125 Dia. |
|
|
|
