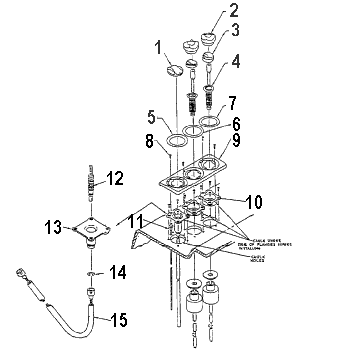

Three Position Control Panel |
| Item |
P/N |
Part Description |
| 1 |
8267XXX
|
Knob Assembly |
| 2 |
8247XXX
|
Bezel. Actuator |
| 3 |
8246XXX
|
Button, Air
Actuator |
| 4 |
6828000
|
Actuator, Switch
Assembly |
| 5 |
B934000
|
Ring, Graphic,
Heater, Spa |
| 6 |
B933000
|
Ring, Graphic,
System, Spa |
| 7 |
B932000
|
Ring, Graphic,
Accessory, Spa (used on Aero Plus, Palio, VectraII) |
| 7 |
C237000
|
Ring, Graphic,
Accessory, Spa (used on Caressa, Model 9800) |
7
|
C238000
|
Ring, Graphic,
Accessory, Spa (used on Quantum, Corsica, Tirage, Venterra,
Razza) |
| 7 |
C239000 |
Ring, Graphic,
Accessory, Spa (used on Model 380) |
| 8 |
9724000
|
Screw, Thread
Cutting, 4-24 X .5" |
| 9 |
B564XXX
|
Panel, 3
Position, w/o Tabs |
| 10 |
A187000
|
Cup, Air Switch |
| 11 |
C061000
|
Cable, Fiber
Optic, 48" X 1.25" Dia. |
| 12 |
7757000
|
Control Shaft
Repair Assembly |
| 13 |
C133000
|
Cup, Heater
Control |
| 14 |
7082000
|
Retainer, E-Ring,
.25 Dia. |
| 15 |
8679000
|
Control Shaft,
Flex, 44"L |
| 15 |
7114000
|
Control Shaft,
Flex, 22"L |
|
|
|
