Z240/340
AIR LINE PIPING
38
ITEM P/N DESCRIPTION QTY
1
2
3
4
5
6
7
8
0825000
H199000
H214000
J975000
H210000
H200000
7164000
H207000
Bushing, Rdcng, 1” x 1/2” SPG x S
Manifold, 8-Port, 3/8” x 1”
Cap, 1” Slip
Hose Clamp, Dual Wire, 3/8” Tube
Ell, 90, 3/8” x 1/2”, Barb x SPG
Manifold, 4 Port, 3/8” x 1”
Ell, 90, 1/2” Street
Ell, 90, 3/8” x 3/4”, Barb x SPG
5
1
3
41
21
4
2
2

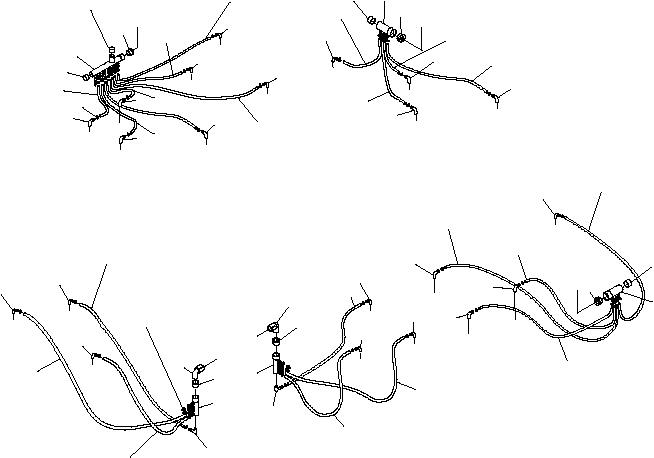

NOTE: All pipes are 3/8” vinyl tubing.
Specific lengths are noted. Secure
all vinyl tubing/barb fitting joints with
one hose clamp, Item 4. All jets
referenced are BMH.
Use plug provided
with manifold
Use plug(s)
provided with
manifold
Jet #4
Jet #6
Jet #21
Jet #9
Jet
#5
Jet #7
Jet #8
To 1-Position
Control Panel
To 1-Position
Control Panel(s)
To 1-Position
Control Panel
1
2
3
4
5
5
5
5
5
5
5
7.75”L.
12.75”L.
6.00”L.
35.25”L.
12.00”L.
17.00”L.
3
6
1
5
5
5
Jet #10
Jet #13
Jet #11
Jet #12
5
18.00”L.
25.00”L.
18.00”L.
23.00”L.
Jet #2
Jet #3
Jet
#1
5
5
5
23.00”L.
16.00”L.
20.00”L.
7
1
6
8
7
1
6
8
5
5
5
Jet #20
Jet #18
Jet #19
14.00”L.
14.00”L.
16.00”L.
Jet #14
Jet #17
Jet #16
Jet #15
To 1-Position
Control Panel
17.00”L.
5
5
5
5
3
1
6
20.00”L.
12.00”L.
17.00”L.
