Electronic

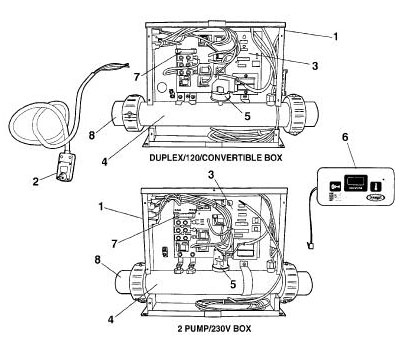

Control Box/ Control Panel |
| Item |
P/N |
Part Name |
| 1 |
R574000 |
Balboa Box/ Duplex/120/Convertible |
| 1 |
R576000 |
Balboa Box/ 2 Pump/ 230V |
| *1 |
S826000 |
Balboa Box/ Duplex/ Cord |
| 2 |
R886000 |
Cord, 15A, GFCI, Leviton |
| 3 |
R790000 |
PCB Assembly, Balboa (Used on R574 & R576) |
| 3 |
S871000 |
PCB Assembly (Used on S826) |
| 4 |
S943000 |
Heater Assembly, 1.0/4.0 kW (Used on R574) |
| 4 |
S944000 |
Heater Assembly, 5.5 kW (Used on R576) |
| 4 |
T041000 |
Heater Assembly, 1.0 kW (Used on S826) |
| 5 |
G323000 |
Pressure Switch, 1 PSI |
| 5 |
R961000 |
Pressure Switch, 2 PSI |
| *6 |
R604000 |
Control Panel, 2 Btn w/ Temp |
| 7 |
S094000 |
Fuse, 25 AMP |
| 8 |
F803000 |
Tail Piece, 2.00" Heater Union |
| 8 |
S930000 |
Tail Piece, 1.5" Heater Union |
| 9 |
R022000 |
Nut, 2" Heater Union |
| N.S. |
S092000 |
Repair Temp Sensor, 96"L. |
| . |
S093000 |
Repair Temp Sensor, 24"L. |
| N.S. |
S931000 |
O-Ring, 1.5" Heater Union |
| . |
R021000 |
O-Ring, 2" Heater Union |
|
* Effective 3/26/01
The Z112 will use
this control box
and panel. |
|
|
|
