Jacuzzi 1 Position Air Control Panel On-Off and Volume plus accessories parts breakdown
 www.guillens.com           Printable           www.jacuzziparts.com

Jacuzzi 1 Position Air Control Panel On-Off and Volume
Jacuzzi color and finish codes   Compare Topside Control Panels

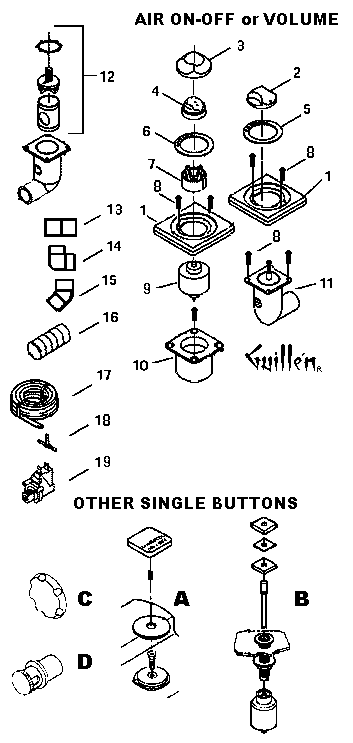

PARTS DRAWING Fig P/N Description Order
1 D851XXX 1 Position Control Panel 1
1a   ??? 1 Position Panel Trim 1
2 8267XXX Air volume control knob 1
3 8247XXX Bezel Sleeve 1
4 8246XXX On-Off button 1
5 8263000 Air volume graphic ring 1
6 8262000 On-Off graphic ring 1
6 H278000 SteamPro graphic ring 1
7 C842000 On-Off button guide 1
8 9724000 Screw self tapping 8
9 C377000 On-Off bellow (air pump) 1
10 C841000 Cup for air bellow 1
11 U775000 Air volume control elbow 1

  OTHER SINGLE CONTROLS
A A334000 Electronic Magic Touch
B 6828000 Air switch button
B 9210000 Magic touch conversion
C 9774xxx Round knob air volume

  RELATED COMPONENTS
12 BP54000 Air cartridge replacement 1
13 0647000 1/2" coupling
14 0436000 1/2" 90 degree elbow
15 0770000 1/2" 45 degree elbow
16 P000050 1/2" Flexible pipe
17 6627000 Air tubing 96" long 1
18 7031000 Air tubing  bleeder tee 1
19 7396000 air switch for pump 1
  RELATED PUMP ASSEMBLIES
  9249000 Pump assy. Low Style less than 11 amp 1

  OTHER AIR PANEL KITS
  G105XXX 3 Air volume kit
  G106XXX 3 Position On-Off Panel
  G107XXX 3-P Complete On-Off control
  G108XXX 3 Position Aeroflo On-Off
  8241XXX 2 Position Control Panel
  D851XXX 1 Position Control Panel

5 OTHER GRAPHIC RINGS Used
    8262000 WHIRLPOOL on off
    8524000 LIGHT  Graphic ring
    8263000 Air volume  Graphic ring
    DS79000 AIRBATH  Graphic ring Aeroflo
    A918000 ALARM  Graphic ring 9600
    A924000 STEAM  Graphic ring 9600
    A919000 ACCESSORY  Graphic ring 9600
    A926000 FUNCTION  Graphic ring 9600
    A922000 PATTERN  Graphic ring 9600
    A925000 SPEED  Graphic ring 9600
