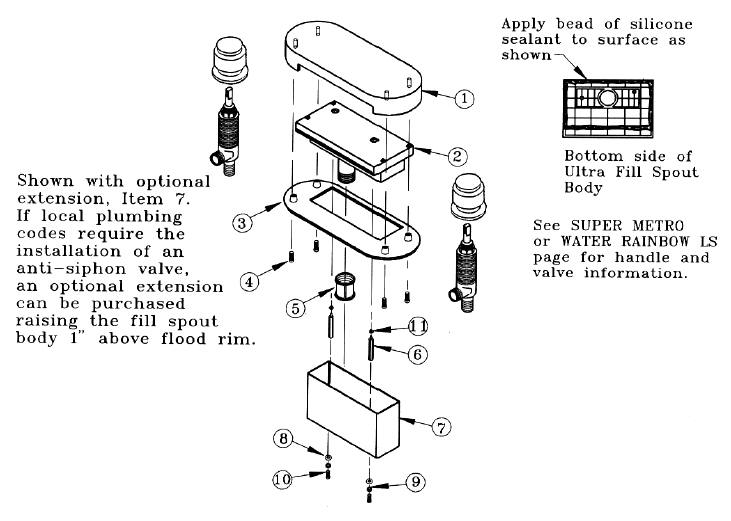

Water Rainbow®
Ultra Fill Spout |
| Item |
Part Name |
P/N |
| N.S. |
Valve Body w/ Cartridge, Sea Crest |
A847000 |
| N.S. |
Ceramic Cartridge |
G695000 |
| N.S. |
Hardware Kit |
A848000 |
| |
|
|
| 1 |
Cover, Ultra, Chrome |
A341827 |
| 1 |
Cover, Ultra, Bright Brass |
A341829 |
| 2 |
Fill Spout Assembly, Ultra |
A165000 |
| 3 |
Plate, Ultra, Chrome |
A342827 |
| 3 |
Plate, Ultra, Bright Brass |
A342829 |
| 4 |
Screw, Thd Ctg, PHP #4 X .38 |
7514000 |
| 5 |
Coupling, 3/4", FPT X FPT |
B374000 |
| 6 |
Spacer, 1/4-20, Brass |
B372000 |
| 6 |
Spacer, 1/4-20, Brass, Short |
B136000 |
| 7 |
Extension, 2.25"L., Chrome w/logo |
B870000 |
| 7 |
Extension, 2.25"L., Bright Brass w/logo |
B871000 |
| 7 |
Extension, 3.25"L., Chrome w/logo |
B872000 |
| 7 |
Extension, 3.25"L., Bright Brass w/logo |
B873000 |
| 8 |
Washer, 1.4 Flt, Type B Pln Wd Ser |
4006832 |
| 9 |
Nut, Locking Hd Kep Type 1/4-20 |
4034832 |
| 10 |
Bolt, Hex, Full Thrd, 1/4-20 x 1.50"L |
3947832 |
| 11 |
Washer, .50" x .27" x .09" Thick |
B373000 |
|
|
|
