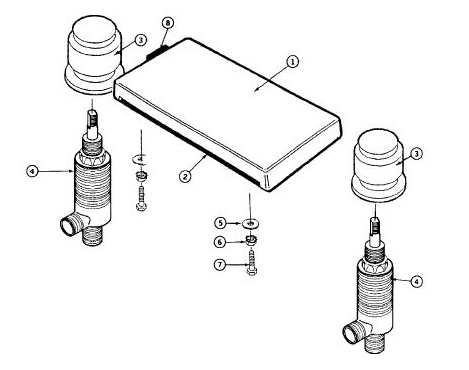

Water Rainbow®
LS Fill Spout |
| Item |
Part Name |
P/N |
| 1 |
Water Rainbow Cover, Chrome |
6630827 |
| 1 |
Water Rainbow Cover, Bright Brass |
5996829 |
| 2 |
Fill Spout Assembly |
5999000 |
| 3 |
Handle, Band |
A843000 |
| 3 |
Handle, Ring |
A844000 |
| 3 |
Handle, Rope |
A845000 |
| 4 |
Valve Body w/ Cartridge, Sea Crest |
A847000 |
| N.S. |
Ceramic Cartridge |
G695000 |
| 5 |
Washer, 1/4 Flt, Pln Wd Ser |
3982832 |
| 6 |
Nut, Locking Hd Kep Type 1/4-20 |
4034832 |
| 7 |
Bolt, Hex 1/4-20 x 1.00"L |
3945832 |
| 8 |
Repair Handle, Water Rainbow |
8676000 |
| N.S. |
Adhesive, Water Rainbow Cover |
5409000 |
| N.S. |
Hardware Kit- Valve Mounting |
A848000 |
| N.S. |
Extension 3.25"L, Black w/logo, notch |
B134000 |
| N.S. |
Extension 2.25"L, Black w/logo, notch |
B135000 |
| N.S. |
Extension 2.25"L, Chrome w/logo, notch |
B866000 |
| N.S. |
Extension 2.25"L, Br. Brass w/logo, notch |
B867000 |
| N.S. |
Extension 3.25"L, Chrome w/logo, notch |
B868000 |
| N.S. |
Extension 3.25"L, Br. Brass w/logo, notch |
B869000 |
| N.S. |
Coupling, 3/4", FPT x FPT |
B374000 |
| N.S. |
Spacer, 1.4-20, Brass |
B372000 |
| N.S. |
Spacer, 1/4-20, Brass, Short |
B136000 |
| N.S. |
Washer, .50" x .27" x .09" Thick |
B373000 |
|
|
|
