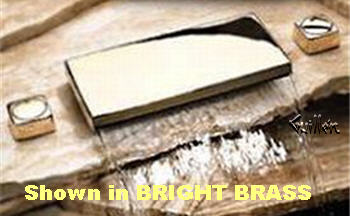

Water Rainbow® Fill Spout Assembly
6690 and T581 6690 Series T581 Series T582000

Faucets above are discontinued by Jacuzzi Whirlpool Bath        Cliclk on pictures above for larger view
Installation Instructions --> Find if any T581 are available <---
WARNING:
The Faucet Series plus many of the replacement parts shown in this page are no longer available. Click on the desire finish or color replacement part below ti view what is available.

SCROLL DOWN FOR ADDITIONAL FINISHES
Fig Number Description Order

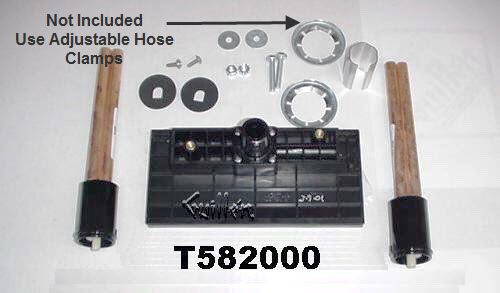

* T582000 Rough-in Kit ( Plumbing )
* T581 Trim Kit ( Spout Cover, Handles )

1 2467000 Faucet repair kit 2
2 5409000 Adhesive pad 3
3 5999000 Spout with diverter lever for 6690 1
4 A165000 Spout w/o lever for T561 1
5 3982832 Washer 2
6 4034832 Locking nut 2
7 3945832 Bolt 2
7a 3971000 Handle screw 2
8 2329000 Handle washer 2
9 2334000 Valve body with cartridge 2
10 2313000 Mount sleeve for the valve body 2
11 4051000 Locking washer 2
11 3971000 Screw 2
12 2338000 Push on locking washer for sleeve 2
13 9236000 Spout flange and nipple 1
14 2334832 Adapter kit for 1/2" copper fittings 1
15 8676000 Repair diverter handle for 5999 1
16  RP6060 Nut Valve 2
1




Metal Covers
      Order
A 5996 Spout cover 1
B 4127 Square handle 2
C U867 Handle insert Cold 1
C U866 Handle insert Hot 1


Plastic Covers
      Order
A 7537 Spout cover 1
B 7952 Square handle 2
C 7956 Handle insert Cold 1
C 7955 Handle insert Hot 1

C

 7953 Handle insert Blank

1
n.s T581 Complete Faucet Trim Plastic 1








































Parts Catalog applies for the following Jacuzzi ( JWB ) models: 6690000; 6690827; 6690828; 6690829; 6690805; 6690815; 6690826; 6690904; 6690914; 6690917; 6690924; 6690940; 6690945; 6690949; 6690951; 6690952; 6690953; 6690955; 6690956; 6690962; 6690963; 6690969; 6690978; 6690908; 6690922; T581000; T581827; T581828; T581829; T581805; T581815; T581826; T581904; T581914; T581917; T581924; T581940; T581945; T581949; T581951; T581952; T581953; T581955; T581956; T581962; T581963; T581969; T581978; T581908; T581922, T582000




Water Rainbow® Fill Spout Assembly



P/N Part Name
6630827 Water Rainbow Cover, Chrome
5996828 Water Rainbow Cover, Gold
5996829 Water Rainbow Cover, Bright Brass
7537XXX Water Rainbow Cover, Color Select
4127827 Faucet Handle, Chrome
4127828 Faucet Handle, Gold
4127829 Faucet Handle, Bright Brass
7952XXX Faucet Handle, Color Select
7955XXX Insert, Faucet Handle, Hot, Color Select
7956XXX Insert, Faucet Handle, Cold, Color Select
4151000 Insert, Faucet Handle, Chrome, Hot
4156000 Insert, Faucet Handle, Chrome, Cold
4152000 Insert, Faucet Handle, Gold, Hot
4157000 Insert, Faucet Handle, Gold, Cold
4153000 Insert, Faucet Handle, Br. Brass, Hot
4158000 Insert, Faucet Handle, Br. Brass, Cold
5999000 F ill Spout Assembly
8676000 Repair Handle, Water Rainbow
3982832 Washer, 1/4 Flt, Type A Pln Wd Ser
4034832 Nut, Locking Hd Kep Type 1/4-20
3945832 Bolt, Hex 1/4-20 x 1.00"L.
2334000 Faucet Valve Assembly
2313000 Mount, Valve Body
2329000 Gasket, Faucet Handle
1981000 Wrench, Faucet Cartridge
2338000 Speed Nut, Push-On, 1.5"
4051000 Washer, #10 External Tooth, Locking
3971000 Screw, PHPM, #10-24 x .50"L.
B134000       Extension, 3.25"L., Black w/Logo, notch
B135000       Extension, 2.25"L., Black w/Logo, notch
B866000       Extension, 2.25"L., Chrome w/Logo, notch
5867000        Extension, 2.25"L., Br. Brass w/Logo, notch
B868000       Extension, 3.25"L., Chrome w/Logo, notch
B869000       Extension, 3.25"L., Br. Brass w/Logo, notch
B374000 Coupling, 3/4", FPT x FPT
B372000 Spacer, 1/4-20, Brass
B137000 Spacer, 1/4-20, Brass, Short
5409000 Adhesive, Water Rainbow Cover
  *Available in all Designer Bath Colors. See General Bath Parts Catalog
