Jacuzzi ® M465000 / BG81XXX Topside Control Panel Parts Catalog and related Electronic Equipment
 www.guillens.com           Printable           www.jacuzziparts.com
Jacuzzi ® Whirlpool Bath - Designer 1 & D2 Series 120 Volt


D1 D2
Part # Part # Description
T428000 T455000 Complete Control Kit

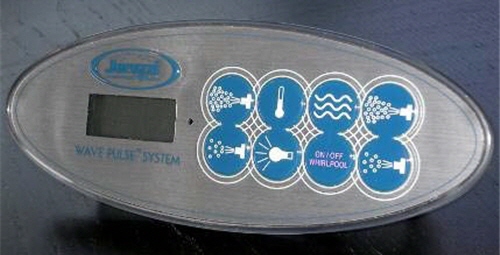

M465000 BG81XXX Topside Control Panel
N475000 N475000 Topside panel trim
M464000 S474000 Electronic Control Box
Replacement HF90000 + GQ24xxx
R379000 N441000 J Pump; Motor and pump
  J222000 Light Cable
M908000 8018000 Light Housing
M474000 S948000 Air Valve
M463000 M463000 Water Cable
M825000 M825000 Mod Cable
R948000 R948000 Water Bypass
N917000 N917000 Air Cable
M466000 M466000 Water level sensor screw
B07102T B07102T Suction elbow left hand
B07202T B07202T Suction elbow right hand
2-98 > 2-01 2-01 >10-07

Dates used

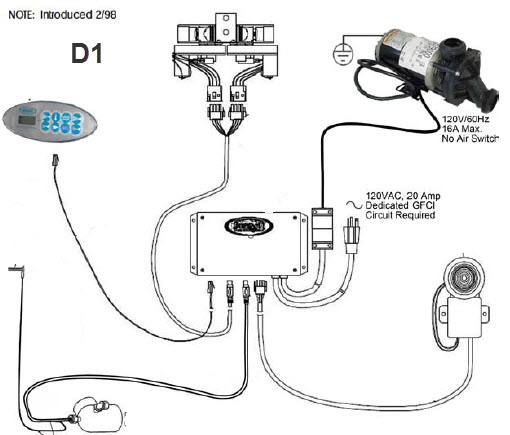

Designer 1

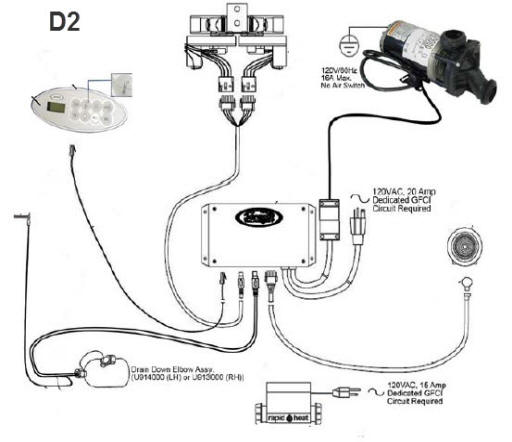

Designer 2

Guillen's Enterprises, Inc. - Since 1973 - a Jacuzzi authorized genuine parts distributor
 11040 West Flagler Street. Miami, FL 33174 USA
Revised: 20100204
