Jacuzzi ® 4161000 HTB Jet Replacement Parts Catalog
www.guillens.com         Printable           www.jacuzziparts.com

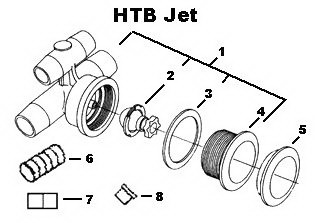

Jacuzzi 4161000 HTB Jet Replacement Parts Catalog

Jacuzzi color and finish codes

Complete Jacuzzi 4161000 HTB Jet is Obsolete Use Jet Replacement 4161REPL

      The 4161REPL Jet assembly in White is the only known jet that completely replaces the original 4161000 without a hassle and it looks very similar to the original from inside the tub using the same shell hole diameter. To replace the original jet beware that two end plugs may be required for the end jets.
      The internal parts are not compatible and must be used in the original body.
      The 1" flexible PVC piping and coupling shown above makes an easier jet replacement experience.

      Jacuzzi Brothers, Inc. Manufactured the original HT Jet and later sold by Jacuzzi Whirlpool Bath as Jacuzzi 4161000 HTB Jet assdembly and it was used only in the Cast Iron whirlpool bath model Lumiere. The HTB Jet became obsolete by 2000.
      The remaining Original 4163000 eyeball assembly are sold until the stock is depleted. HTB Jet trim available as 4136827; 4136828 and 4136829 until supply last

      Jacuzzi Brother HT Jet Obsolete ordering number were 43-2999-08-R; 43-2999-40-R; 43-30000-03-R; 43-30000-45-R; 43-3001-02-R;  43-3001-28-R; 43-3002-01-R;  43-3002-28-R; 43-0586-19-R; 430705-15-R; 43-0692-02-R; 43-0687-09-R; 43-0689-15-R; 13-1020-09-R

Guillen's Enterprises, Inc. - Since 1973 - a Jacuzzi authorized genuine parts distributor
 11040 West Flagler Street. Miami, FL 33174 USA
Revised: 20100303
