Jacuzzi � GQ24XXX / GX07XXX D1, D2, D3, D5 , J4 Topside Control Panel Parts Catalog and related Electronic Equipment
 www.guillens.com           Printable           www.jacuzziparts.com

120 Volts Luxury Whirlpool Designer 1, 2, 3, 5, & J4
GQ24000
D1, D2, D3 D5 J4
P/N P/N P/N Description
***** GQ23000   Production Kit
  GT10000 GT10000 Complete Repair Kit

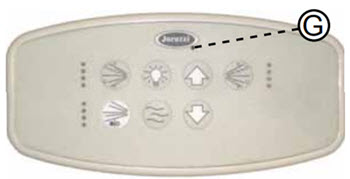

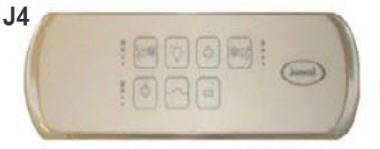

GQ24XXX GQ24XXX GX07XXX Topside Control Box
HF90000 FX79000 FX79000 Electronic Control Box
N/A EW61000 N/A Ozone box
N/A EK53000   Junction Box
FX86000 FX86000 FX86000 Wire Harness, Air Valve
M825000 M825000 M825000 Cable, Control Panel 6'
R379000 EX69000 EX69000 Motor and Pump
N/A S749000  S750000 Rapid Heater
BN95000 BN95000 BN95000 Chromo therapy 6-pin cable
BN96000 BN96000 BN96000 Chromo therapy Light Assy
N/A GN65000  GN65000 Illumatherapy Light
S948000 S948000 S948000 Electric air switch
02/01/2011 12/10/08 05/01/10+ From
Present 04/30/2010 Present To
GX07

***IMPORTANT Replacement Only for D1, D2, D3: You Must replace the Control Box And Control Panel at the same time. These components are for older D1, D2 & D3 120V IES systems. The D1 & D2 light connector is not compatible with the HF90000 Control Box. To install new light, you must purchase BN96000 and BN95000 above and drill a new hole into the tub
---------------------------------------------------------------------------------------------------------------

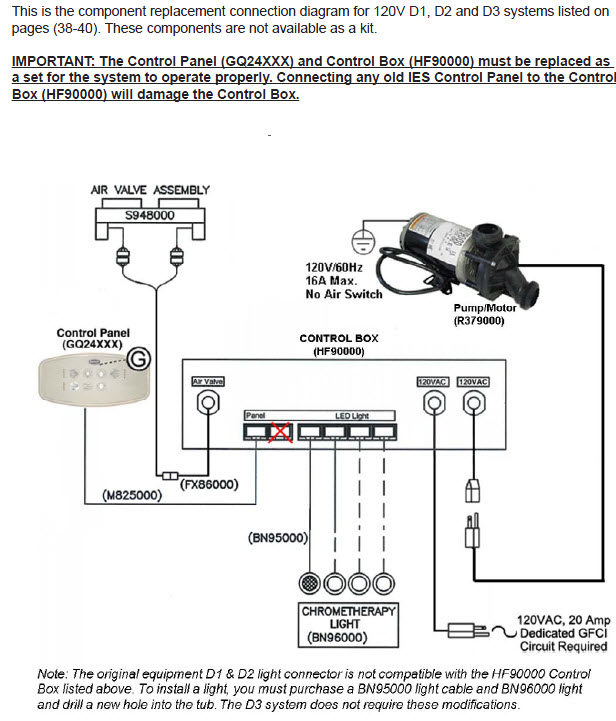

Replacement System for :D1, D2, D3 will replace Controls DC63000, T455000, T428000, M465000
GQ24000
