Jacuzzi EJ15XXX Topside control panel Parts Catalog and related Electronic Equipment

Jacuzzi ® EJ15XXX Topside Panel Parts Catalog and related Electronic Equipment
www.guillens.com Printable www.jacuzziparts.com

Brand	IES	IES	IES	IES

Production Kit	GD17000
Complete Repair Kit	EJ10000-RH	EJ10000-LH	EJ14000-RH	EJ14000-LH
Topside Control Panel	EJ15XXX	EJ15XXX	EJ15XXX	EJ15XXX
Electronic Control Box	EJ07000	EJ07000	GD32000	GD32000
Ozone box	EK38000	EK38000	EK62000	EK62000
Junction Box	EK53000	EK53000	EK63000	EK63000
Cable, Control Panel 6'	M825000	M825000	M825000	M825000
Motor and Pump	EJ22000	EJ26000	EJ24000	EJ28000
Air Valve Wire Harness	N917000	N917001	N917000	N917000
Air Valve Bracket Assembly	S948000	S948001	S948000	S948000
Din Box	U761000	U761001
Chromotherapy 6' 6-pin cable	BN95000	BN95000	BN95000	BN95000
Chromotherapy Light Assembly	BN96000	BN96000	BN96000	BN96000
Volt	120	120	240	240
From	3/27/2005	3/27/2005	11/15/2005	11/15/2005
To	08//10/2008	08//10/2008	12/10/2008	12/10/2008

120 Volt Finestra Luxury Whirlpool

IES	IES
P/N	P/N	Description
GD17000		Production Kit
EJ10000	EJ10000	Complete Repair Kit
EJ15XXX	EJ15XXX	Topside Control Panel
EJ07000	GD31000	Electronic Control Box
EK38000	EK38000	Ozone box
EK53000	EK53000	Junction Box
M825000	M825000	Cable, Control Panel 6'
EJ22000	EJ26000	Motor and Pump
N917000	N917000	Air Valve Wire Harness
S948000	S948000	Air Valve Bracket Assembly
U761000	U761000	Din Box
BN95000	Chromo therapy 6' 6-pin cable
BN96000	Chromo therapy Light Assembly
Y738000	Y738000	Illumatherapy
3/27/2006	From
08//10/2008	To

240 Volt Finestra Luxury Whirlpool

IES	IES	Brand
		Production Kit
EJ14000	EJ14000	Complete Repair Kit
EJ15XXX	EJ15XXX	Topside Control Panel
GD32000	GD32000	Electronic Control Box
EK62000	EK62000	Ozone box
EK63000	EK63000	Junction Box for Ozone
M825000	M825000	Cable, Control Panel 6'
BP06000	BP06000	Junction Box for Heater
EJ24000	EJ28000	Motor and Pump
N917000	N917000	Air Valve Wire Harness
S948000	S948000	Air Valve Bracket Assembly
		Din Box
BN95000	BN95000	Chromotherapy 6' 6-pin cable
BN96000	BN96000	Chromotherapy Light Assembly
Y738000	Y738000	Illumatherapy
240	240	Volt
11/15/2005	11/15/2005	From
12/10/2008	12/10/2008	To

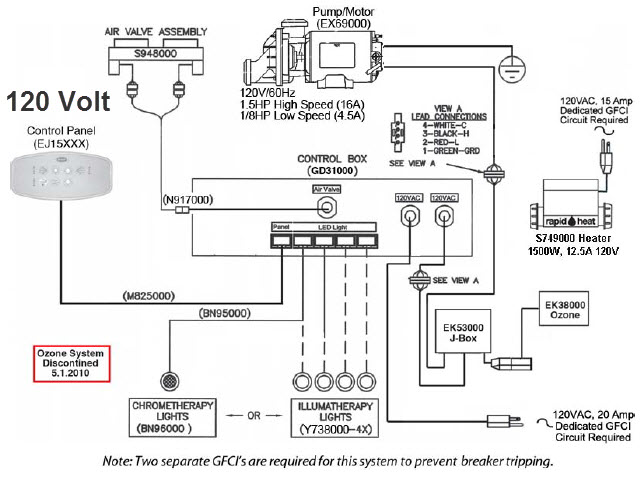

120 Volt

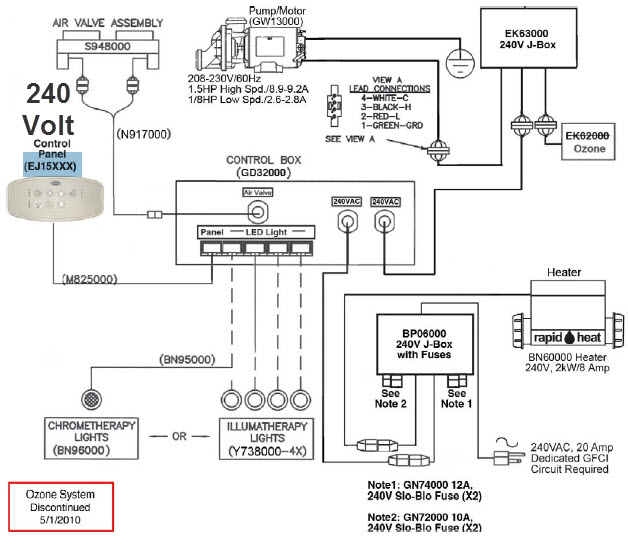

240 Volts

Guillen's Enterprises, Inc. - Since 1973 - a Jacuzzi authorized genuine parts distributor
11040 West Flagler Street. Miami, FL 33174 USA
Revised: 20091101
