Jacuzzi ® BN88XXX Topside Panel Parts Catalog
and related Electronic Equipment
 www.guillens.com           Printable           www.jacuzziparts.com
Designer III, D3 120 volt & 240 volts


IES IES/Gecko
120 Volt 240 Volt Description
BU41000 GE70000   Production Kit
DC63000
OR
BR67000		 DC65000   Complete Repair Kit

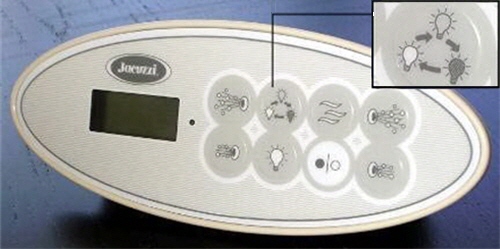

BN88XXX BN88XXX   Topside Control Panel
BP01000 BN89000   Electronic Control Box
DX10000   Blower Control Box
BP06000   Junction Box
M825000 M825000   Cable, Control Panel 6'
  DZ86000   Cable, Dual Water Sensor 8'
Y180000   Blower, 800W, 120V, 12A
N917000 N917000   Air Valve Wire Harness
R948000 R948000   Cable Bypass, Water Level
S948000 S948000   Air Valve Bracket Assembly
U761000 Din Box
U913000 U913000   Drain-Down Elbow Assy
S750000 BN60000   Rapid Heater
M463000 M463000   Sensor, Temperature
BN97000 BN96000   Chromatherapy 5 LED Assy
BN95000 BN95000   Chromatherapy 6' 6-pin cable
BN96000 BN96000   Chromatherapy 6' 6-pin cable
Y738000     Clear HTC fiber optic Light Jets
BR73000     Clear HTC fiber optic Light Jets
GX21000   Check Valve, Blower (2X)
R379000 G776000   Motor
120 240   Volt
NA GT17000   Retrofit Repair
1/31/2005 1/31/2005 From
3/27/2006 3/27/2006   To

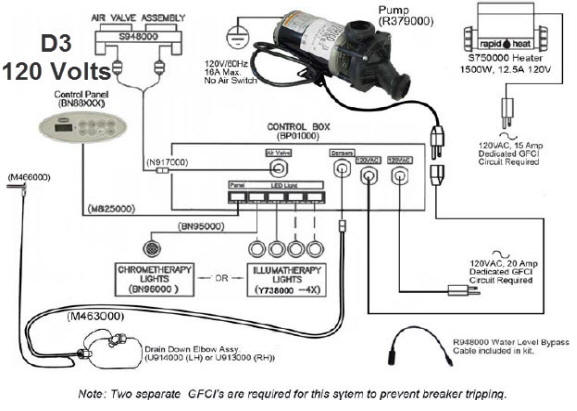

D3 120 Volts

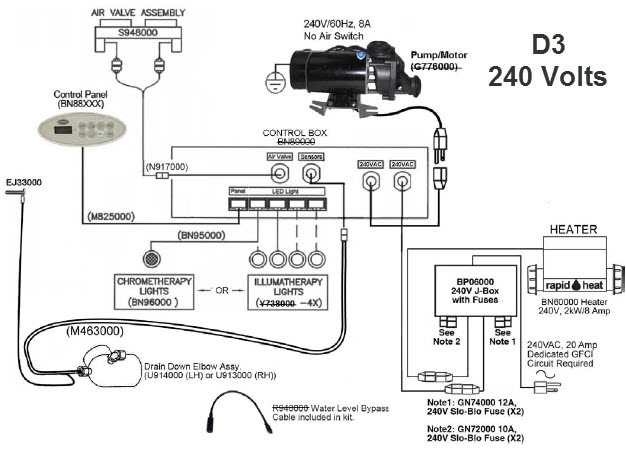

D3 240 Volts

Guillen's Enterprises, Inc. - Since 1973 - a Jacuzzi authorized genuine parts distributor
 11040 West Flagler Street. Miami, FL 33174 USA
Revised: 20091101
