Jacuzzi ® AP2 - AccuPro 2 Jet Assembly Parts Catalog
 www.guillens.com           Printable         www.jacuzziparts.com

Jacuzzi color and finish codes



Jacuzzi AP2 - AccuPro 2 Jet Assembly Parts Catalog

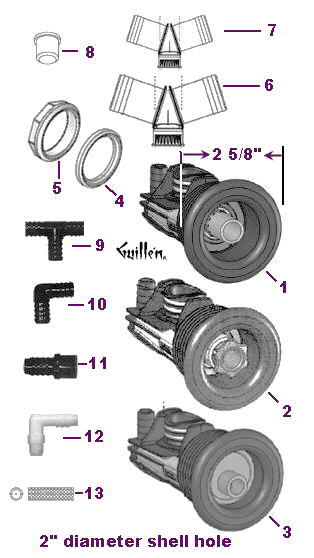

AP2 JET PARTS DRAWING Fig

P/N

 Description
1 EZ15xxx AP2 Jet Non-Adjustable Nozzle
2 EZ16xxx AP2 Jet Adjustable Nozzle
3 EZ20xxx Obsolete - AP2 Jet Pulse - Spinning

4 EZ18000 AP2 Jet Ring
5 EZ17000 AP2 Jet Nut
6 EZ14000 1 1/2" x 1 1/2" Barb x 3/4" FSNAP Y tee
7 EZ13000 1" x 1" Barb x 3/4" FSNAP Y tee

8 EZ11000 1" Jet back plug
8 EZ12000 1 1/2" Jet back plug

9 EZ44000 1" Barb tee
10 EZ46000 1" Barn 90 degree elbow

11 EZ49000 1" Slip x Barb adapter
11 EZ58000 1 1/2" Slip x Barb adapter

12 EK59000 1/8" mip x 3/8" barb 90 degree elbow

13 EK57000 1" ID Braided tubing (Sold by linear inch)
NS EZ59000 1" Clamp for braided tubing
13 EK58000 1 1/2" ID Braided tubing (Sold linear inch)
NS EZ60000 1 1/2" Clamp for braided tubing



      Jacuzzi AP2 Jets colors shown in this page EZ15914 EZ15940 EZ15969 EZ16914 EZ16940 EZ16969



Guillen's Enterprises, Inc. - Since 1973 - a Jacuzzi authorized genuine parts distributor
 11040 West Flagler Street. Miami, FL 33174 USA
Revised: 20100305
