Bidet BB-3000 Installation Instructions

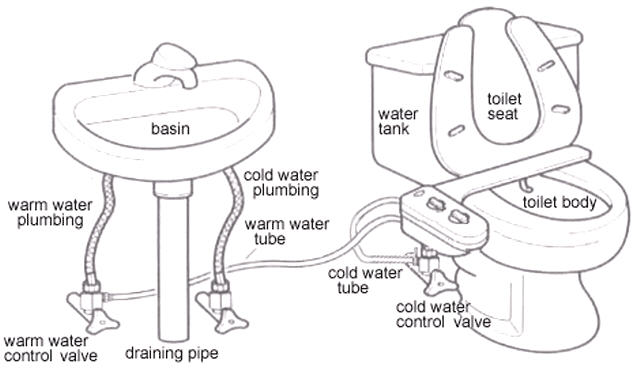

• Shut off the incoming hot water to the sink and the incoming water to the toilet both at their respective wall valves and drain the toilet's water tank by flushing it.

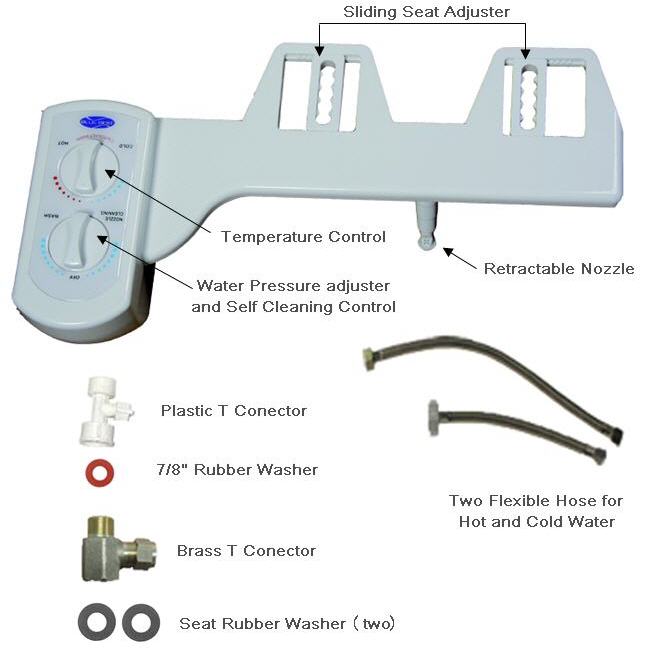

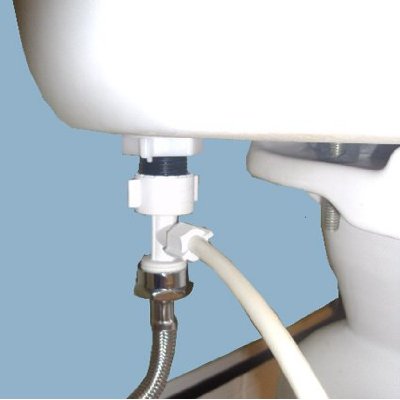

• Remove the existing water hose or pipe that connects the wall valve to the toilet tank and replace it with the short Flexible Hose included in the box, hand-tightening it to the Plastic T Connector that must be attached to the connection at the bottom of the toilet tank.  Don't over tighten it.


• Hand-tighten the Flexible Hose to the other end of the Plastic T Connector, placing the 7/8 Black Rubber Washer inside the end of the Flexible Hose.


• Remove the hose or pipe that connects the hot water supply valve to the sink.  The unit comes with a larger 16 Flexible Hose that may later substitute the existing hose or pipe if needed.


• Connect the Brass T Connector to the hot water supply valve.


• Place the small 7/8 Black Rubber Washer inside the large end (7/8) of the Flexible Hose and connect it to the sink water inlet.  Then connect the small end (3/8) of the Flexible Hose to the male end of the Brass T Connector.  Don't over tighten it.


• Remove the toilet seat and cover by unscrewing the bolts and nuts using a flat-head screwdriver.

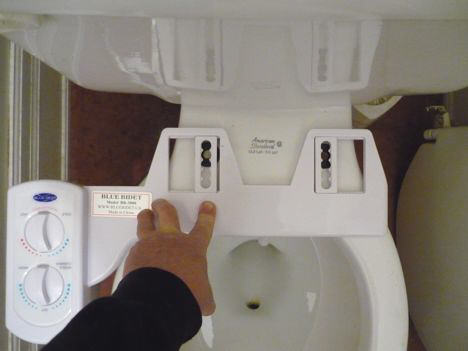

• Place a large Black Rubber Washer on each bolt hole and place the bidet on top of them, aligning the Sliding Seat Adjusters with the holes.


• Set the toilet seat and cover on top of the bidet and reinsert and tighten the bolts and nuts securing everything in position.


• Measure and cut the flexible plastic tube needed to connect the bidet's cold water inlet to the Plastic T Connector on the toilet tank.  Use the rest of the flexible plastic tube to connect the bidet's hot water inlet to the Brass T Connector at the sink.


• After installation, open both water valves and allow the water pass through the system.


• Slowly turn the bidet's Water Pressure Knob to the right to open the valve and remove the stagnant water.


• Select the desired position of the Nozzle.  And you're done installing your new bidet; congratulate yourself and enjoy.

  For more details, see instructions included with the product

• Once seated on the toilet, set the Temperature Control knob to the medium setting.  Slowly turn the Water Pressure & Nozzle Cleaning Control knob to the right until it reaches the comfortable pressure required for cleaning.  Adjust the pressure and temperature to your comfort level.

  WARNING: Be careful to turn the Water Pressure & Nozzle Cleaning Control knob very slowly until the comfortable pressure is reached.  Also, check the Temperature Control knob before use as temperature varies each day and is not the same for every house.


• The Nozzle has three positions for better water direction.  Choose the one that fits you better.


• Self - Cleaning System:     after using the bidet turn the Water Pressure & Nozzle Cleaning Control knob to the left to activate the Self Cleaning System that will clean the Nozzle surface.  Return the knob to the center  position to turn the water off.  You may also use the Self-Cleaning System to run water until you get hot water in your bathroom, if needed, setting the Temperature Control knob half way into the hot setting.
